3. Load wheels single or in castor

Load wheels carry the load of the device. These wheels are available separately or in castors (fixed/swivel/swivel+brake/center bold fix/center bold brake).
Vulkoprin offers load wheels for light, medium and heavy duty.

Standard wheels, single or in castor, available out of stock.

Products made of Vulkollan® polyurethane, thermoplastic polyurethane, polyamide and rubber

Load capacity – Wheel width

40-9200 kg
80-100-125-150-200 till 600 mm
Tyre

Heavy duty

Series made of Vulkollan® polyurethane (seperately or in housing)

Vulkollan® is the benchmark polyurethane elastomer in the market, combining excellent mechanical properties for highest dynamical load bearing capacity and abrasion resistance. That is why you will find Vulkollan® in the most demanding applications.  Reliable performance and maximum service life are the main distinguishing factors of Vulkoprin wheels made of Vulkollan® polyurethane.

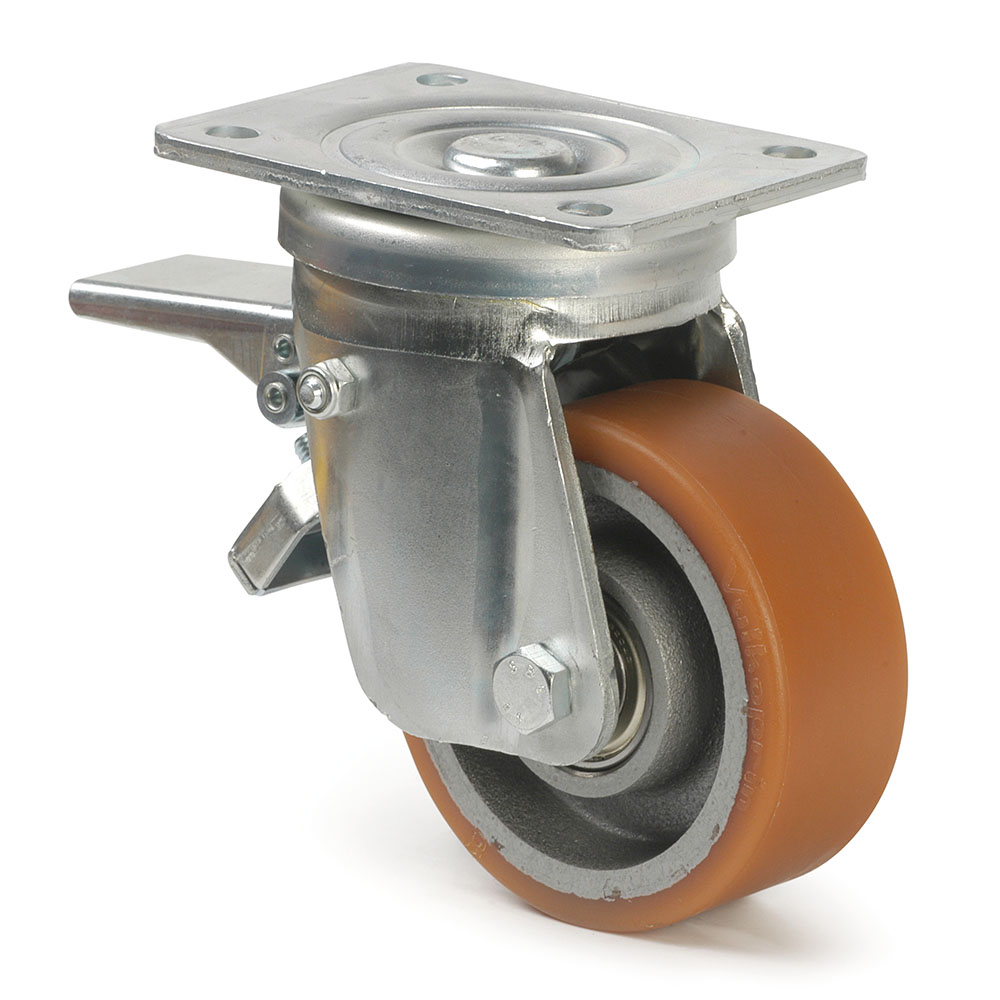

EH: wheeldiameter 250<>600 mm / tread width 100<>200 mm with loading capacity till 9200kg. Single or in steel welded castor.

H: wheeldiameter 150<>500 mm / tread width 80 mm with loading capacity till 3000kg. Single or in steel pressed castor.

B: wheeldiameter 100<>250 mm / tread width 40<>80 mm with loading capacity till 1800kg. Single or in steel pressed castor.

L: wheeldiameter 80<>300 mm / tread width 30<>50 mm with loading capacity till 1200kg. Single or in steel pressed castor.

E: wheeldiameter 100<>400 mm /  tread width 40<>50 mm with loading capacity till 500kg. Single or in steel pressed castor.





Light till medium duty

Series made of thermoplastic polyurethane (only in housing)

is a synthetic thermoplastic resin offering high elasticity, a broad range of hardnesses, good resistance to chemical agents and capacity for colouring, good sliding, and silence when rolling. It has good mechanical properties. It does not require special disposal at the end of its lifespan and can easily be recycled.



WKGK : with aluminium core,  seperately or with steel pressed housing construction. Load capacity till 800kg. Wheeldiameters 100, 125, 150 and 200 mm.

Series made of polyamide (only in housing)

Products made of polyamide 6, normally referred to as nylon, are injection pressed thermoplastics. Polyamide 6 has a low friction coefficient which ensures good sliding. It has a high breaking point and low wear, which makes for a long-lasting product which is insensitive to chemical and atmospheric agents. Its low specific weight also makes polyamide 6 products lightweight. Polyamide 6 has an excellent ability to absorb colour. It does not require special disposal at the end of its useful lifespan and is easily recycled



PLSK : seperately or with stainless steel pressed housing. Load capacaity till 550kg. Wheeldiameters 100, 125, 150 and 200 mm.

PLVG : seperately or with steel pressed housing. Load capacity till 300kg. Wheeldiameters 100, 125, 150 and 200 mm.



Series made of rubber (only in housing)

Elastic rubber is produced with a mix type specifically intended to offer optimum sliding, good resistance to abrasion and an excellent load capacity. It should not be used for extended periods of time at temperatures over 70°C.

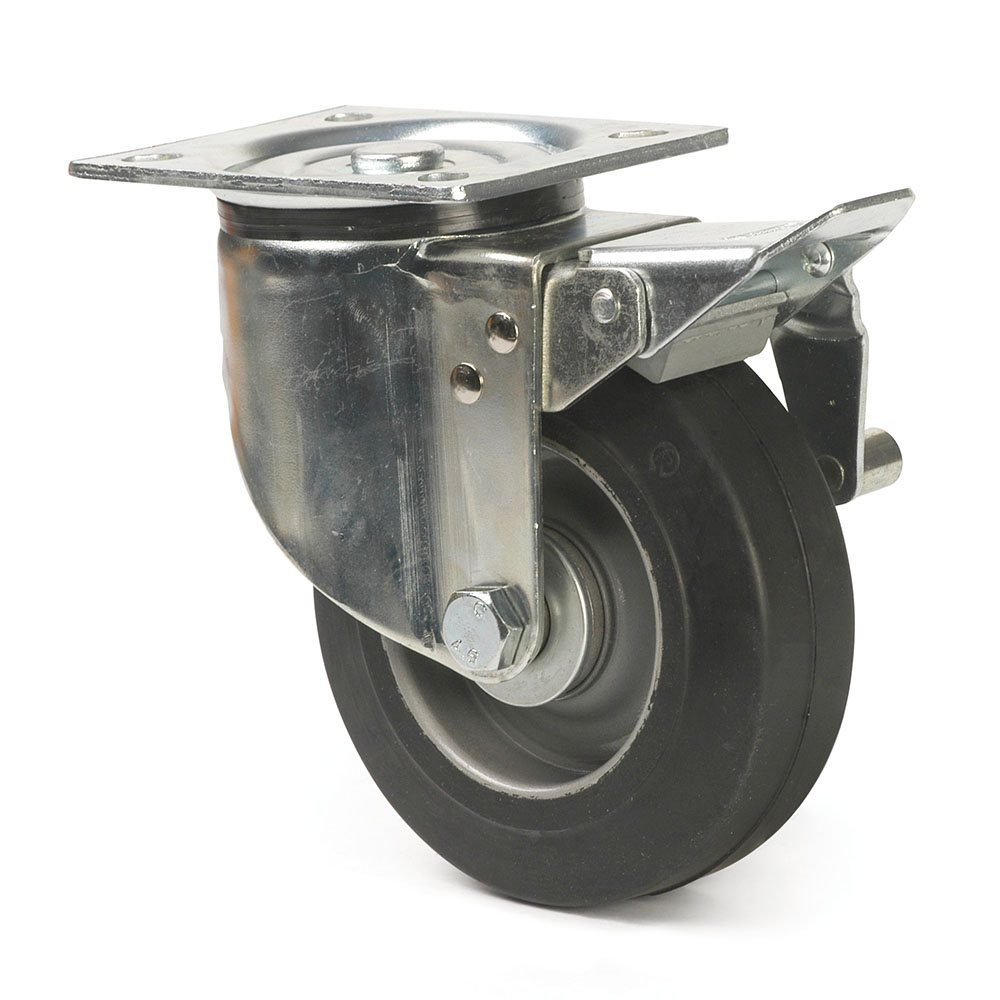

ENAY: seperately or in steel pressed housing. Load capacity till 400kg.

RGVR : seperately or in steel pressed housing. Load capacity till 300kg. Wheeldiameters 100, 125, 160 and 200 mm.

RTFK : seperately or in stainless steel pressed housing. Load capacity till 105kg. Wheeldiameters 75, 100 and 125 mm.



Wheel center
  • steel, cast iron, stainless steel, aluminium or polyamide



  • Light duty: plain or roller bearing
  • Medium & heavy duty: precision ball bearings
Castor
Light duty up to 600kg load capacity

The light castors are suitable for standard transport applications with regular loads under normal use on flat industrial floors.



Wiel: Thermoplastic polyurethane, polyamide or rubber

Housing: A type castor



Castor specifications

  • Steel pressed construction
  • Swivel head consisting of double ball bearing
  • Version: zinc plated
  • Standard sizes (diameter 80, 100, 125, 150, 200mm)
  • Standard (square) plate dimensions
  • Fixed/swivel/swivel+brake





Medium duty up to 1200kg load capacity

The medium duty castors are suitable for applications with regular peak loads during intensive use whith high requirements on performance and low rolling resistance.



Wheel: Vulkollan® of Printhane™ wheel met kraagstukken en boutbevestiging

Housing: U castor ( steel pressed) or MZ castor (steel welded)





Castor specifications

  • Steel pressed or steel welded construction
  • Swivel head consisting of double ball bearing
  • Version: zinc plated
  • Standard sizes (diameter 100, 125, 150, 200, 250mm)
  • Standard (square) plate dimensions
  • Fixed/swivel/swivel+brake





Heavy duty up to 10.000kg load capacity

A damping polyurethane tread made of Vulkollan® or Printhane™ in combination with a high-end “Vulkoprin” castor guarantees continuous operational reliability and a long service life.



Ideal for applications with frequent swivel on smooth and uneven floors.  Very high load capacity, wear-resistant and shockproof.

Available in various building heights.



Particularly suitable for all types of AGV with high user requirements.



Wheel: Vulkollan® of Printhane™ wiel met kraagstuk en boutbevestiging.

Housing: GK steel welded castor



Castor specifications

  • Steel welded construction
  • Swivel head with steel hardened axial grooved ball bearing and a steel hardened tapered roller bearing
  • Single (from diameter 125 ) + double (from diameter 150mm)
  • Version: zinc plated or lacquered
  • Standard sizes (diameter 125, 150, 200, 250mm with wheel widths of 50, 65, 80mm)
  • Standard (rectangular) plate dimensions according to EN 12532-33 (4-16 km)
  • Fixed/swivel/swivel+brake



Optional

  • directional fixing 4×90
  • foot protection
  • for double forks also possible with continuous axle



Customized

A customized housing construction with damping polyurethane tread made of Vulkollan® or Printhane™, with a long service life.



For every application Vulkoprin can design, produce and test the optimal wheel/castor, in small or large volumes.

High loads, long distance runs, frequent swiveling, aggressive environments… ask our engineers to exchange their  wheel experience.



Wheel centers,  PU covers and castors are engineered and optimized to your application to guarantee an optimal 24/7 operation.



Wheel diamters up to 1100 mm with load bearing capacity of 20.000 kg.





Options

Stainless steel, corrosion protection, hydrolysis resistant Vulkollan®, electrically conductive Vulkollan®, convex or concave tread, rectifying, stainless steel bearingsalternative hardnesses for more damping or higher load capacity.

Properties

Reliable performance and maximum service life are the main distinguishing factors of Vulkoprin wheels.



Properties Vulkollan® & Printhane™ polyurethane

  • Temperature range: -40°C to +85°C, short-term to +120°C.
  • 75, 80, 92 or 95 Shore A
  • Vibration and sound attenuation
  • Resistant to oils, grease and numerous chemicals
  • Non-marking
  • Very wear-resistant
  • High load capacity



Suitable for medium to heavy transport on clean-, but also irregular-  as floors in bad condition.



Properties polyamide Printalon® PA6

  • Temperature range: -30°C to +80°C
  • Resistant to oils, grease and numerous chemicals
  • Impact and impact resistant
  • High load capacity
  • Low rolling resistance



Suitable for medium transport on clean floors.



Properties thermoplastic polyurethane Printhopan®

  • Temperature range: -20°C to +35°C, short-term to +60°C.
  • 59 Shore D (brown color) and 74 Shore D (beige color).
  • Sound attenuating
  • Resistant to oils, grease and numerous chemicals
  • Non-marking
  • Wear-resistant
  • Medium load capacity



Suitable for medium transport on clean-, but also irregular floors.
